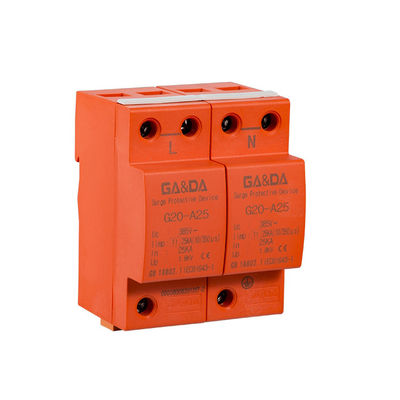

Name: GADA Class I 25KA AC 280V 385V Lighting Single Phase Surge Arrester G20-A25-2P
Brand: GADA Class I 25KA AC 280V 385V Lighting Single Phase Surge Arrester G20-A25-2P
SKU: G20-A25-2P
Price: 31.50 USD
Availability: InStock
Rating: 4.5 (127 reviews)

GADA Class I 25KA AC 280V 385V Lighting Single Phase Surge Arrester G20-A25-2P

1 Piece

MOQ

$31.50(1 - 1 pieces) $30.00(2 - 3 pieces) $29.00(>=4 pieces)

Prix

GADA Class I 25KA AC 280V 385V lighting single phase surge lightning arrester

Hot Products

Product Description

G20-A25 series voltage limiting type / voltage switching type primary power surge protectors are designed according to IEC and GB standards, and applied to surge protection at the first stage of the power supply system. Products are standard 35mm rail mounting methods.

G20-A25 series voltage limiting type / voltage switching type primary power surge protectors with high flow capacity, single module impact current up to 50kA (10/350 s), can prevent all kinds of lightning surge. Products are applied to the power supply of the equipment system in the higher risk area of lightning strike. The first surge protection can be used in single phase / three-phase power supply line.

Product capability parameter
Product model	G2015MT	G2025MT	G2050MT
Pole	1p,2p,3p,4p	1p,2p,3p,4p	1p,2p,3p,4p
Rated frequency	One port	One port	One port
SPD category	Voltage limiting type	Voltage switching type	Voltage switching type
Test category	Class I test	Class I test	Class I test
Rated voltage Un	220V AC 50~60Hz	220V AC 50~60Hz	220V AC 50~60Hz
Maximum continuous operating voltage Uc	385V AC 50~60Hz	385V AC 50~60Hz	385V AC 50~60Hz
Insulation resistance	>100MΩ	>100MΩ	>100MΩ
Impulse discharge current llimp(10/350μs)	15kA	25kA	50kA
Voltage protection level Up(1.2/50μs)	2.5kV	2.2kV	2.4kV
Response time tA	≤100ns	≤100ns	≤100ns
Size	144x90x66	144x90x66	144x90x66
Sectional area of wires	6~25mm²
Installation method	35mm standard rail (EN50022/DIN46277-3)
Working environment temperature	-40~85℃
Sheathing material	Plastic, accord with UL94 V-0
Protection level	IP20
Authentication	CQC CE Type test

Model	G20-A25-2P
Color	orange
Certification	CE,CQCMT series Class I 25KA AC 280V 385V type1 surge protection device
purpose	1,Main power distribution panel in buildings 2,Overhead distribution box in buildings 3,Outdoor distribution cabinet / distribution box
function	To shunt and pressure limitingthe indirect lightning current, direct lightning current or other instantaneous overvoltage.
Characteristic	1:Large discharge energy 2:Long service life 3:Voltage protection level is less than 2500V
selling point	1:No follow current 2:No leakage current 3:High safety coefficient 4:Strong environmental resistance 5:Modular installation
advantage	1:Over 10 years experience in production and processing 2:faster product innovation, production specialization, timely delivery 3:Strict quality inspection procedure

Certifications

Company Profile

FAQ

Q1: Selection of surge protector

Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.

Q2:Are you a lightning surge protectors factory or lightning surge protectors trading company?MT series Class I 25KA AC 280V 385V type1 surge protection device

A2: We are lightning surge protectors manufacturer.

Q3: Warranty and return:

A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.

2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

Q4: How can I get some lightning surge protectors samples?

A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.

Q5: Is sample available and free?

AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.

Q6:Do you accept customized order?

A6:Yes, we do.

Q7: What's the delievery time?

A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
