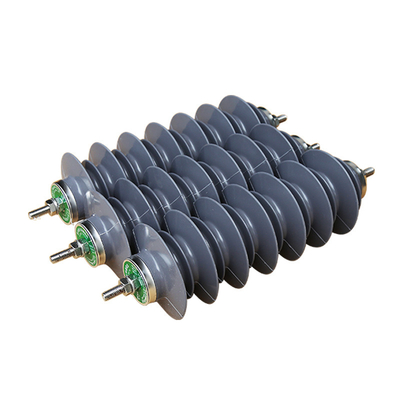

Rated voltage (kV) r.m.s | Continuous operating voltage (kV) r.m.s | 8/20μ s Lighting impulse residual voltage (kV) | 2ms rectangular current (A) | Insulation housing withstand voltage(kV) | ||||||
5kA | 10kA | 5kA | 10kA | Lightning impulse | Power frequency | |||||
3 | 2.55 | 8.9 | 9.4 | 100 | 250 | 40 | 18 | |||
6 | 5.1 | 18 | 19 | 100 | 250 | 60 | 25 | |||
9 | 7.65 | 26.8 | 28 | 100 | 250 | 75 | 25 | |||
10 | 8.4 | 29.5 | 31 | 100 | 250 | 75 | 30 | |||
11 | 9.3 | 32.5 | 34.2 | 100 | 250 | 95 | 30 | |||
12 | 10.2 | 35.7 | 37.6 | 100 | 250 | 105 | 40 | |||
15 | 12.7 | 44.7 | 47 | 100 | 250 | 125 | 45 | |||
18 | 15.3 | 53 | 58 | 100 | 250 | 125 | 55 | |||
21 | 17 | 59.5 | 62.6 | 100 | 250 | 125 | 55 | |||
24 | 19.5 | 68.4 | 75 | 200 | 400 | 125 | 55 | |||
27 | 22 | 77.1 | 81.2 | 200 | 400 | 125 | 55 | |||
30 | 24.4 | 85.5 | 90 | 200 | 400 | 170 | 70 | |||
33 | 27.5 | 96.3 | 101.4 | 200 | 400 | 170 | 70 | |||
36 | 29 | 105 | 110 | 250 | 400 | 185 | 85 | |||
60 | 48 | 160 | 500 | 550 | 140 | |||||
72 | 58 | 191 | 500 | 550 | 140 | |||||
96 | 77 | 237 | 500 | 550 | 175 | |||||
120 | 96 | 295 | 700 | 650 | 275 |
